Grasberg Gold & Copper Mine

Grasberg Gold & Copper Mine

It is the largest gold mine and the third largest copper mine in the world.


Grasberg Gold & Copper Mine
Grasberg Gold & Copper Mine


Location: Papua, Indonesia.

Products: Gold & Copper.

Owner: Freeport-McMoRan.

Deposit Type: Porphyry deposits associated with the 3.2 to 2.7 Ma Grasberg Igneous Complex, porphyry ores of the 4.4 to 3.0 Ma Ertsberg Diorite 2.5 km to the south, and a series of skarns deposits.Together these deposits account for near 80 Mt of copper and around 3900 tonnes of gold (including inferred resources).

Mineralization: Mineralisation associated with the Ertsberg intrusive includes: The Ertsberg stockwork which contained a resource of 122 Mt @ 0.54% Cu, 0.90 g/t Au in 2005.The skarn mineralisation, which includes the: i). GB (Gunung Bijah) - 33 Mt @ 2.5% Cu, 0.8 g/t Au (the original reserve on which mining in the district was commenced), which is surrounded by Ertsberg Diorite near its NW margin; ii). GBT Complex (the vertically stacked GBT, IOZ & DOZ), 1.5 km east of GB on the northern contact, with reserves of >230 Mt @ 1% Cu, 0.8 g/t Au, iii). Dom Skarn, 0.5 km south of GBT, partially enclosed by the intrusive near its SE margin, with >70 Mt @ 1.4% Cu, 0.4 g/t Au, iv). Big Gossan within a fault zone cutting sediments to the west of the Ertsberg Diorite with 33 Mt @ 2.81% Cu, 1 g/t Au, v). Kucing Liar (dated at 3.42 Ma, the oldest mineralisation in the district, predating the Dalam Diorite) is associated with a fault zone between the two intrusive complexes, but close to the Grasberg complex, contains >225 Mt @ 1.42% Cu, 1.57 g/t Au.

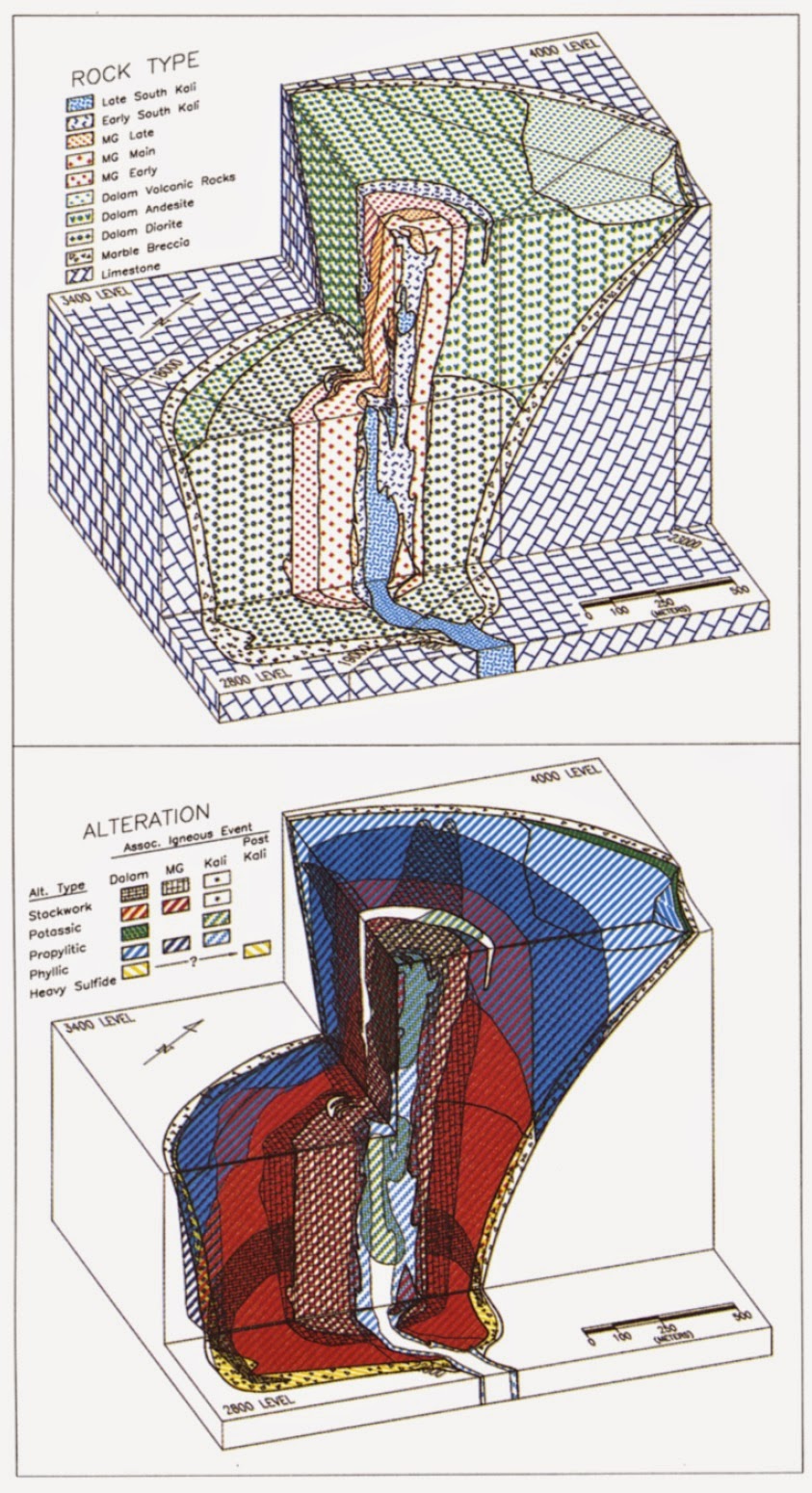

Block diagram showing the Grasberg Igneous Complex and zoned alteration. Weak stockwork and potassic alteration associated with South Kali Dikes are not shown.
Block diagram showing the Grasberg Igneous Complex and zoned alteration. Weak stockwork and potassic alteration associated with South Kali Dikes are not shown.
